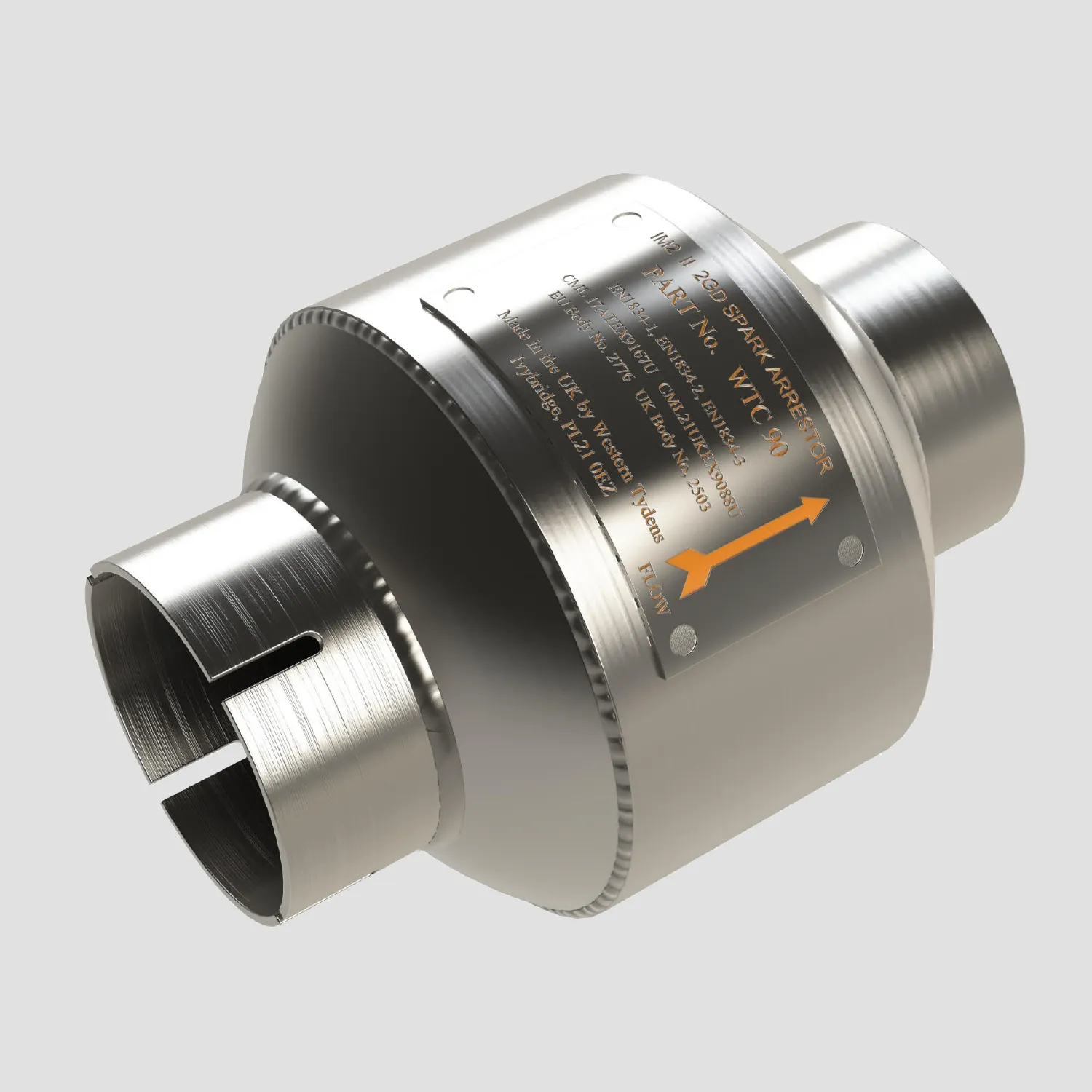

WTC Spark Arrestors
Designed for conventional diesel engines. Intended for temporary use or as an end of line addition to an existing exhaust layout. Compact lightweight design.
Features
- Optimised for small engine applications.
- Compact lightweight design.
- Designed for temporary use or as an end of line addition to existing exhaust layout.
- Used in conjunction with existing silencer.
- Enhanced internal gas flow dynamics.
Material and finish
- 100% Stainless Steel Construction – ATEX & UKEX Approved
- Stainless Steel – Self colour or polished (optional)
ATEX/UKEX certification pending
- To ATEX EN1834 (parts 1, 2 & 3)
- ATEX Approved Body No. 2776
- UKEX Approved Body No. 2503
ISO9001-2015
Specification and dimensional information
| Model | Power Range HP (Kw) | Exhaust Gas Flow Rate 500°C (calculated) | WeightKg | Dim. A mm | Dim. B mm | Dim. Cmm (Inches) | Dim. D (mm) | Datasheet Download |
|---|---|---|---|---|---|---|---|---|
| WTC 90 | 5 - 40 (4 - 30) | 210 CFM @ 15” H2O | 0.66 Kg | 126 | 50 | 25.4 - 50.8 (1.0 - 2.0) | 92.4 |  Download Datasheet |
General application, installation and maintenance user guide
Specification and dimensional information
| Model | Power Range HP (Kw) | Datasheet Download |
|---|---|---|
| WTC 90 | 5 - 40 (4 - 30) | Download Datasheet |
General application, installation and maintenance user guide
