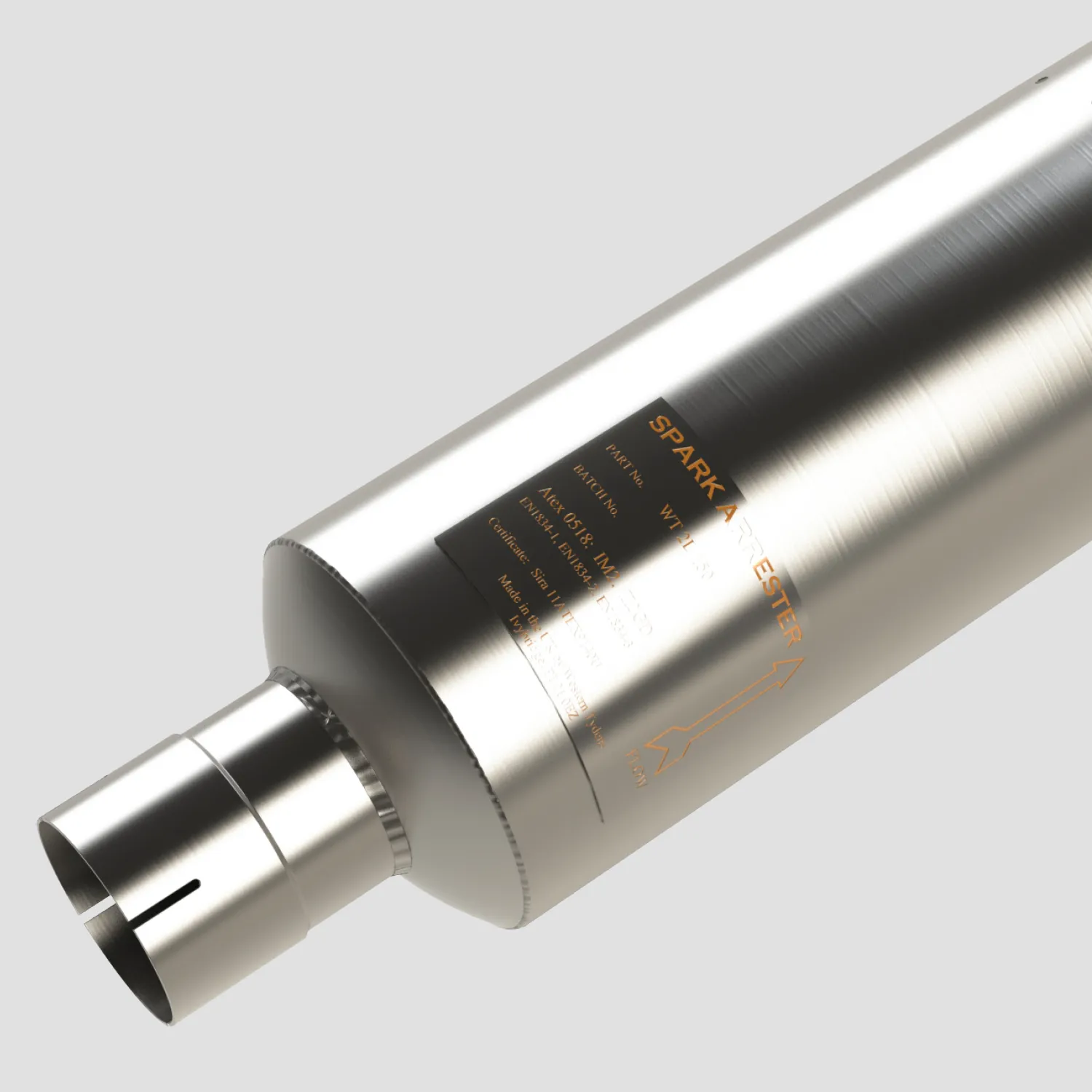

WT 2L Spark Arrestors
Designed for conventional diesel engines. Intended for permanent installation
Features
- Twin Centrifuge Type
- Good Silencing
- Used with or as replacement for muffler.
- Improved internal gas flow dynamics
Material and finish
- 100% Stainless Steel Construction – ATEX & UKEX Approved
- Stainless Steel – Self colour or polished (optional)
- Optional Mild Steel – Non ATEX, Non UKEX
- Mild Steel – Heat Resistant Black Paint.
Tested and approved
- To ATEX EN1834 (parts 1, 2 & 3)
- ATEX Approved Body No. 2776
- UKEX Approved Body No. 2503
ISO9001-2015
Specification and dimensional information
| Model | Power Range HP (Kw) | Exhaust Gas Flow Rate 500°C(calculated) | WeightKg | Dim. A mm | Dim. B mm | Dim. Cmm(Inches) | Dim. D (mm) | Datasheet Download |
|---|---|---|---|---|---|---|---|---|
| WT 2L 90 | 20 - 50(15 - 37) | 310 CFM @ 15” H2O | 3 | 640 | 455 | 25.4 - 50.8(1.00 - 2.00) | 92.4 |  Download Datasheet |
| WT 2L 125 | 30 - 80(22 - 60) | 460 CFM @ 15” H2O | 4 | 680 | 500 | 38.1 - 63.5(1.50 - 2.50) | 127.4 | Download Datasheet |
| WT 2L 150 | 50 - 135(37 - 100) | 635 CFM @ 15” H2O | 6 | 885 | 665 | 50.8 - 76.2(2.00 - 3.00) | 152.4 | Download Datasheet |
| WT 2L 150X | 50 - 102(37 - 75) | 480 CFM @ 15” H2O | 5.5 | 728 | 507 | 50.8 - 76.2(2.00 - 3.00) | 152.4 | Download Datasheet |
| WT 2L 175 | 95 - 200(71 - 149) | 850 CFM @ 15” H2O | 8 | 971 | 750 | 76.2 - 101.6(3.00 - 4.00) | 177.4 | Download Datasheet |
| WT 2L 175X | 95 - 200(71 - 149) | 850 CFM @ 15” H2O | 7.5 | 865 | 645 | 76.2 - 101.6(3.00 - 4.00) | 177.4 | Download Datasheet |
| WT 2L 200 | 150 - 340(112 - 254) | 1150 CFM @ 15” H2O | 11 | 1145 | 910 | 101.6 - 127(4.00 - 5.00) | 202.4 | Download Datasheet |
| WT 2L 200X | 150 - 295(112 - 220) | 995 CFM @ 15” H2O | 9 | 995 | 760 | 101.6 - 127(4.00 - 5.00) | 202.4 | Download Datasheet |
| WT 2L 235 | 250 - 450(186 - 336) | 2100 CFM @ 15” H2O | 15 | 1335 | 1110 | 114.3 - 152.4(4.50 - 6.00) | 233.5 | Download Datasheet |
| WT 2L 235X | 250 - 370(186 - 275) | 1725 CFM @ 15” H2O | 13 | 1195 | 960 | 114.3 - 152.4(4.50 - 6.00) | 233.5 | Download Datasheet |
| WT 2L 300 | 325 - 550(242 - 410) | 2025 CFM @ 15” H2O | 26 | 1490 | 1250 | 139.7 - 177.8(5.50 - 7.00) | 305 | Download Datasheet |
| WT 2L 300X | 325 - 522(242 - 390) | 1925 CFM @ 15” H2O | 24 | 1365 | 1125 | 139.7 - 177.8(5.50 - 7.00) | 305 | Download Datasheet |
| WT 2L 360 | 475 - 750(354 - 560) | 2585 CFM @ 15” H2O | 47 | 1758 | 1500 | 152.4 - 203.2(6.00 - 8.00) | 356.5 | Download Datasheet |
Range reference, user guide, and installation examples:
Specification and dimensional information
| Model | Power Range HP (Kw) | Datasheet Download |
|---|---|---|
| WT 2L 90 | 20 - 50(15 - 37) | Download Datasheet |
| WT 2L 125 | 30 - 80(22 - 60) | Download Datasheet |
| WT 2L 150 | 50 - 135(37 - 100) | Download Datasheet |
| WT 2L 150X | 50 - 102(37 - 75) | Download Datasheet |
| WT 2L 175 | 95 - 200(71 - 149) | Download Datasheet |
| WT 2L 175X | 95 - 200(71 - 149) | Download Datasheet |
| WT 2L 200 | 150 - 340(112 - 254) | Download Datasheet |
| WT 2L 200X | 150 - 295(112 - 220) | Download Datasheet |
| WT 2L 235 | 250 - 450(186 - 336) | Download Datasheet |
| WT 2L 235X | 250 - 370(186 - 275) | Download Datasheet |
| WT 2L 300 | 325 - 550(242 - 410) | Download Datasheet |
| WT 2L 300X | 325 - 522(242 - 390) | Download Datasheet |
| WT 2L 360 | 475 - 750(354 - 560) | Download Datasheet |
Range reference, user guide, and installation examples:
