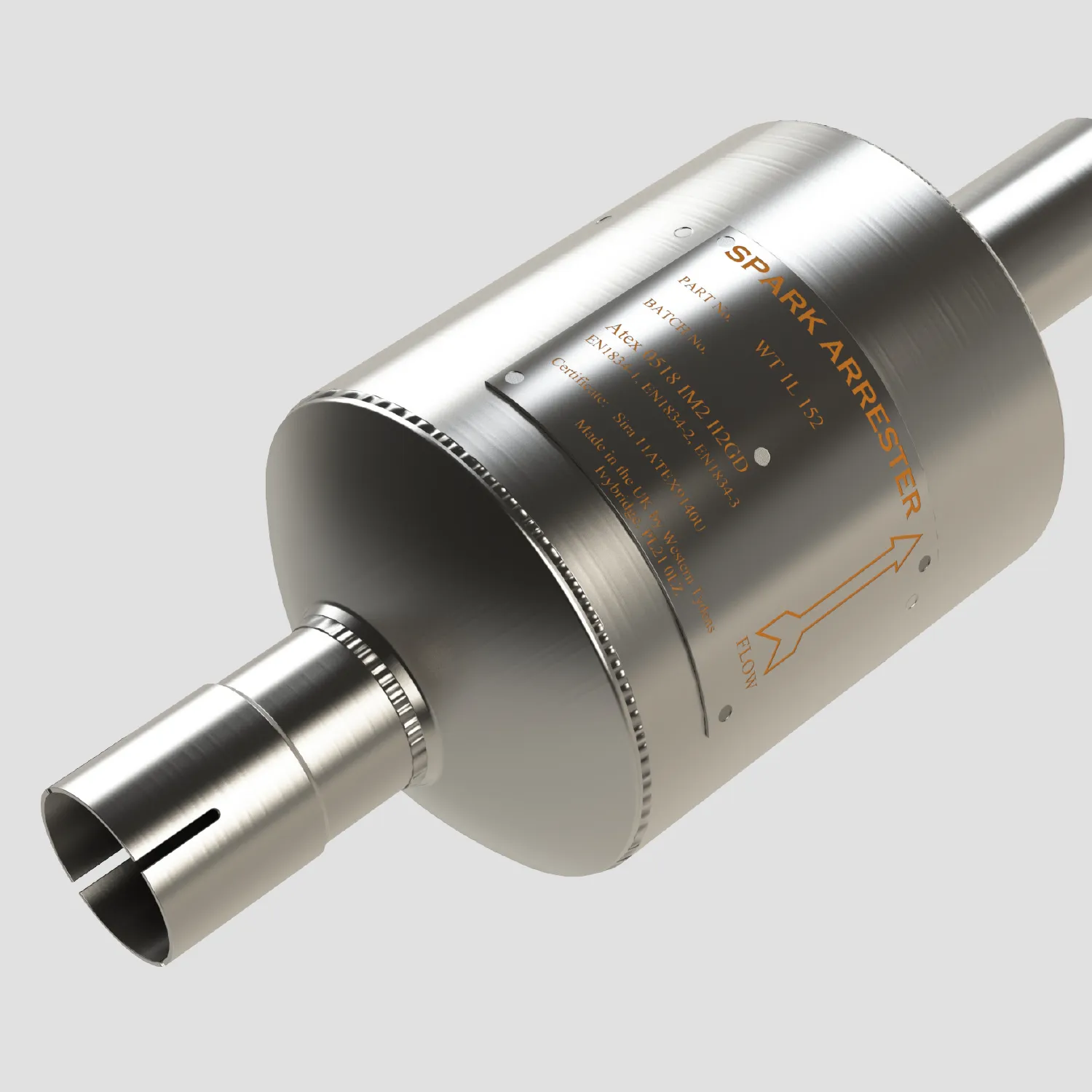

WT 1L Spark Arrestors
Designed for conventional diesel engines. Intended for temporary use or as an end of line addition to an existing exhaust layout.
Features
- Designed for temporary use or as an end of line addition to existing exhaust layout.
- Used in conjunction with existing silencer.
- Improved internal gas flow dynamics.
Material and finish
- 100% Stainless Steel Construction – ATEX & UKEX Approved
- Stainless Steel – Self colour or polished (optional)
- Optional Mild Steel – Non ATEX, Non UKEX
- Mild Steel – Heat Resistant Black Paint.
Tested and approved
- To ATEX EN1834 (parts 1, 2 & 3)
- ATEX Approved Body No. 2776
- UKEX Approved Body No. 2503
ISO9001-2015

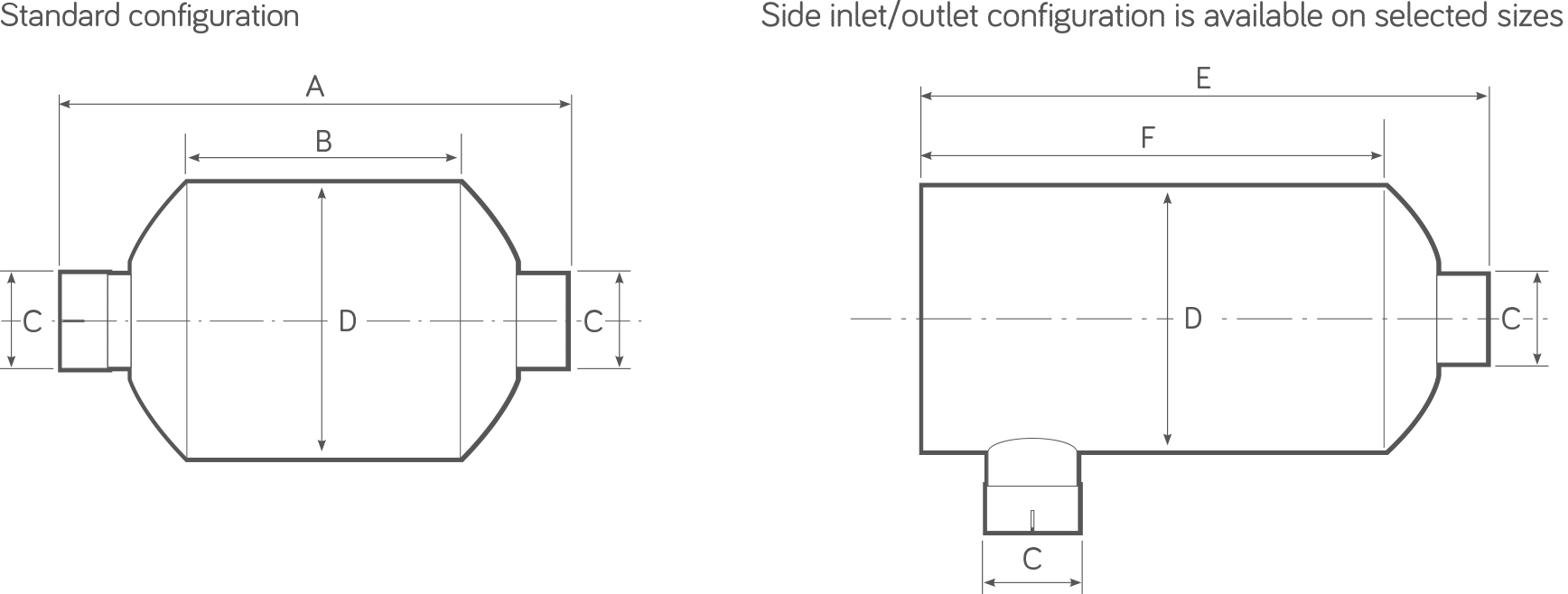

Specification and dimensional information
| Model | Power Range HP (Kw) | Exhaust Gas Flow Rate 500°C(calculated) | WeightKg | Dim. A mm | Dim. B mm | Dim. Cmm(Inches) | Dim. D (mm) | Datasheet Download |
|---|---|---|---|---|---|---|---|---|
| WT 1L 92 | 5 - 25(4 - 19) | 237 CFM @ 15” H2O | 1.6 | 313 | 135 | 31.8 - 44.5(1.25 - 1.75) | 92.4 |  Download Datasheet |
| WT 1L 125 | 15 - 35(11 - 26) | 266 CFM @ 15” H2O | 2.5 | 334 | 145 | 38.1 - 50.8(1.50 - 2.00) | 127.4 | Download Datasheet |
| WT 1L 152 | 20 - 50(15 - 37) | 456 CFM @ 15” H2O | 3 | 352 | 165 | 44.5 - 63.5(1.75 - 2.50) | 152.4 | Download Datasheet |
| WT 1L 175 | 30 - 70(22 - 52) | 493 CFM @ 15” H2O | 4 | 384 | 200 | 50.8 - 63.5(2.00 - 2.50) | 177.4 | Download Datasheet |
| WT 1L 205 | 40 - 90(30 - 67) | 633 CFM @ 15” H2O | 5 | 391 | 205 | 57.2 - 69.9(2.25 - 2.75) | 202.4 | Download Datasheet |
| WT 1L 235 | 70 - 130(52 - 97) | 937 CFM @ 15” H2O | 5 | 427 | 235 | 63.5 - 88.9(2.50 - 3.50) | 233.5 | Download Datasheet |
| WT 1L 270 | 90 - 165(67 - 123) | 785 CFM @ 15” H2O | 8 | 508 | 275 | 88.9 - 101.6(3.50 - 4.00) | 273 | Download Datasheet |
Range reference, user guide, and installation examples:
Specification and dimensional information
| Model | Power Range HP (Kw) | Datasheet Download |
|---|---|---|
| WT 1L 92 | 5 - 25(4 - 19) | Download Datasheet |
| WT 1L 125 | 15 - 35(11 - 26) | Download Datasheet |
| WT 1L 152 | 20 - 50(15 - 37) | Download Datasheet |
| WT 1L 175 | 30 - 70(22 - 52) | Download Datasheet |
| WT 1L 205 | 40 - 90(30 - 67) | Download Datasheet |
| WT 1L 235 | 70 - 130(52 - 97) | Download Datasheet |
| WT 1L 270 | 90 - 165(67 - 123) | Download Datasheet |
Range reference, user guide, and installation examples:
Other types of Spark Arrestor
NT Spark Arrestors
Designed for modern low emission diesel engines. Suitable for temporary or permanent installation in the exhaust system and can be used alongside or as a replacement for the existing silencer.
+ MORE

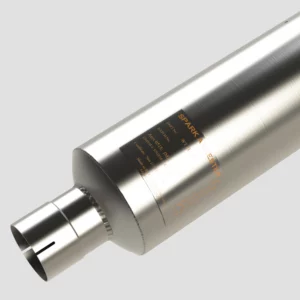

WT 2L Spark Arrestors
Designed for conventional diesel engines. Intended for permanent installation
+ MORE

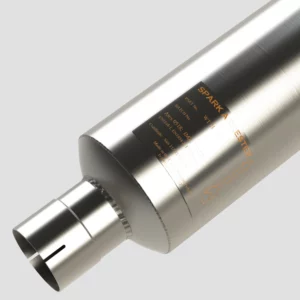

TGS Spark Arrestors
Designed for conventional diesel engines. Intended for permanent installation. Used with or as replacement for muffler.
+ MORE
TGL Spark Arrestor
Simple centrifuge type spark arrestor. Most suitable for single cylinder engines. Provides modest silencing
+ MORE

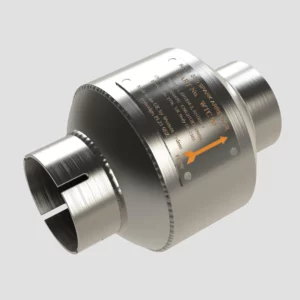

WTC Spark Arrestors
