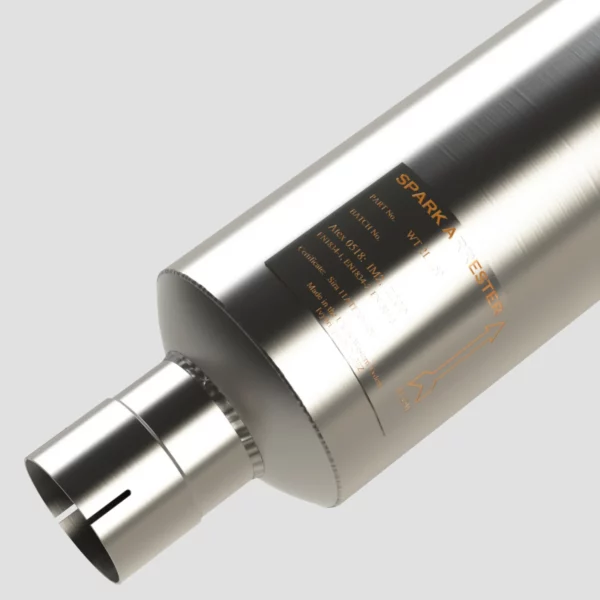

TGS Spark Arrestors
Designed for conventional diesel engines. Intended for permanent installation. Used with or as replacement for muffler.
Features
- Twin Centrifuge Type
- Good Silencing
- Intended for permanent installation
- Used with or as replacement for muffler
- Improved internal gas flow dynamics
Material and finish
- 100% Stainless Steel Construction – ATEX & UKEX Approved
- Stainless Steel – Self colour or polished (optional)
- Optional Mild Steel – Non ATEX, Non UKEX
- Mild Steel – Heat Resistant Black Paint.
Tested and approved
- To ATEX EN1834 (parts 1, 2 & 3)
- ATEX Approved Body No. 2776
- UKEX Approved Body No. 2503
ISO9001-2015

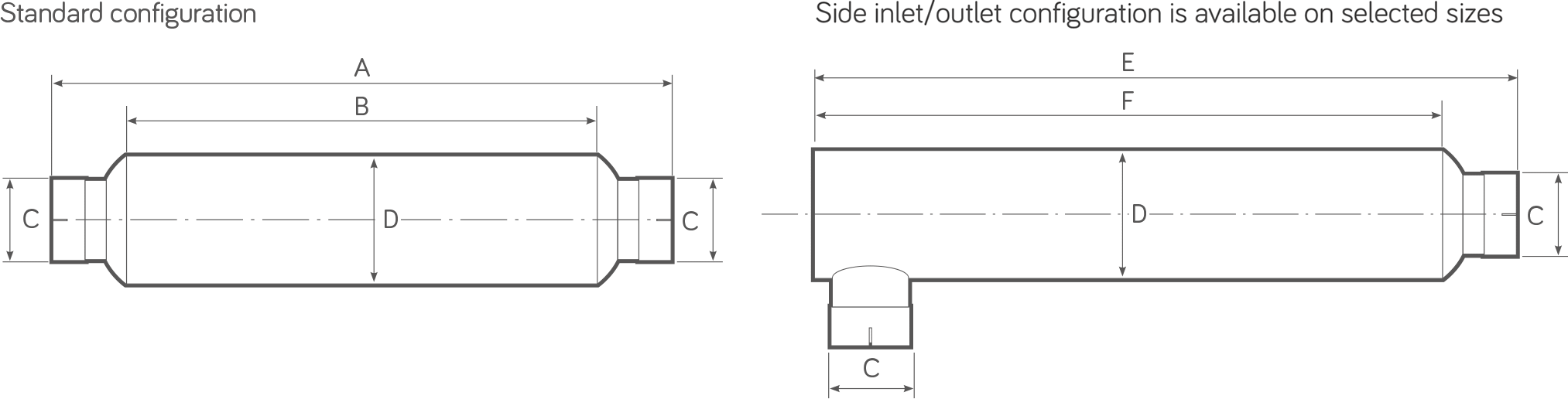

Specification and dimensional information
| Model | Power Range HP (Kw) | Exhaust Gas Flow Rate 500°C(calculated) | WeightKg | Dim. A mm | Dim. B mm | Dim. Cmm(Inches) | Dim. D (mm) | Datasheet Download |
|---|---|---|---|---|---|---|---|---|
| TGS 2L 90 | 10 - 50(7 - 37) | 195 CFM @ 15” H2O | 3 | 490 | 305 | 32 - 51 | 92.4 |  Download Datasheet |
| TGS 2L 127 | 10 - 55(7 - 41) | 225 CFM @ 15” H2O | 3 | 570 | 380 | 38 - 51 | 127.4 | Download Datasheet |
| TGS 2L 150 | 50 - 90(37 - 75) | 325 CFM @ 15” H2O | 6 | 765 | 585 | 51 - 76 | 152.4 | Download Datasheet |
| TGS 2L 150T | 75 - 120(56 - 90) | 500 CFM @ 15” H2O | 6 | 850 | 665 | 63 - 89 | 152.4 | Download Datasheet |
| TGS 2L 150M | 110 - 160(80 - 120) | 675 CFM @ 15” H2O | 6 | 850 | 665 | 76 - 101 | 152.4 | Download Datasheet |
| TGS 2L 155A | 25 - 80(19 - 60) | 250 CFM @ 15” H2O | 3 | 465 | 275 | 38 - 63 | 152.5 | Download Datasheet |
| TGS 2L 200 | 140 - 200(105 - 149) | 825 CFM @ 15” H2O | 9 | 865 | 665 | 76 - 101 | 202.4 | Download Datasheet |
| TGS 2L 235T | 215 - 300(160 - 225) | 850 CFM @ 15” H2O | 16 | 1320 | 1100 | 101 - 127 | 232.4 | Download Datasheet |
Range reference, user guide, and installation examples:
Specification and dimensional information
| Model | Power Range HP (Kw) | Datasheet Download |
|---|---|---|
| TGS 2L 90 | 10 - 50(7 - 37) | Download Datasheet |
| TGS 2L 127 | 10 - 55(7 - 41) | Download Datasheet |
| TGS 2L 150 | 50 - 90(37 - 75) | Download Datasheet |
| TGS 2L 150T | 75 - 120(56 - 90) | Download Datasheet |
| TGS 2L 150M | 110 - 160(80 - 120) | Download Datasheet |
| TGS 2L 155A | 25 - 80(19 - 60) | Download Datasheet |
| TGS 2L 200 | 140 - 200(105 - 149) | Download Datasheet |
| TGS 2L 235T | 215 - 300(160 - 225) | Download Datasheet |
Range reference, user guide, and installation examples:
