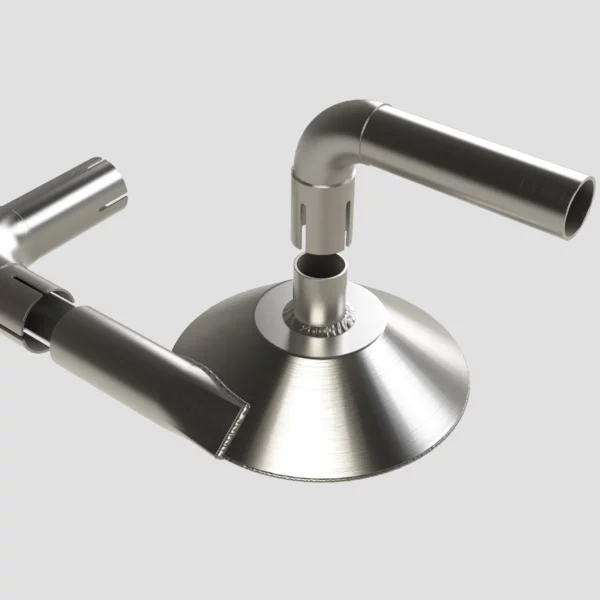

TGL Spark Arrestor
Simple centrifuge type spark arrestor. Most suitable for single cylinder engines. Provides modest silencing
Features
- Simple centrifuge type
- Provides modest silencing
- Most suitable for single cylinder engines
Material and finish
- 100% Stainless Steel Construction – ATEX & UKEX Approved
- Stainless Steel – Self colour or polished (optional)
- Optional Mild Steel – Non ATEX, Non UKEX
- Mild Steel – Heat Resistant Black Paint
Tested and approved
- To ATEX EN1834 (parts 1, 2 & 3)
- ATEX Approved Body No. 2776
- UKEX Approved Body No. 2503
ISO9001-2015
Specification and dimensional information
| Model | Power Range HP (Kw) | Exhaust Gas Flow Rate 500°C (calculated) | WeightKg | Dim. A mm | Dim. B mm | Dim. Cmm (Inches) | Dim. D (mm) | Datasheet Download |
|---|---|---|---|---|---|---|---|---|
| TGL 150 | 1 - 10 (1 - 7.5) | 45 CFM @ 15” H2O | 0.75 Kg | 238 | 100 | 25 - 38 (1 - 1.5) 1" Outlet as standard | 150 |  Download Datasheet |
General application, installation and maintenance user guide
Specification and dimensional information
| Model | Power Range HP (Kw) | Datasheet Download |
|---|---|---|
| TGL 150 | 1 - 10 (1 - 7.5) | Download Datasheet |
General application, installation and maintenance user guide
